Rationalizing a Legacy Part Family Before Reverse Engineering Every Variant
Before reverse engineering every legacy SKU, build a part-family map that separates true functional variants from duplicates, superseded numbers, cosmetic differences, wear, field modifications, and bad records. Then rank each candidate by active equipment, consequence of shortage, demand pattern, available evidence, interface risk, and approval effort. Reconstruct only the variants with a defensible business and technical case.
Choose the right order path
Farm intake fits multi-SKU, recurring, inspection-sensitive, staged, packaged, scanning, reverse-engineering, or otherwise complex work. Instant quote fits clean files and straightforward requirements.

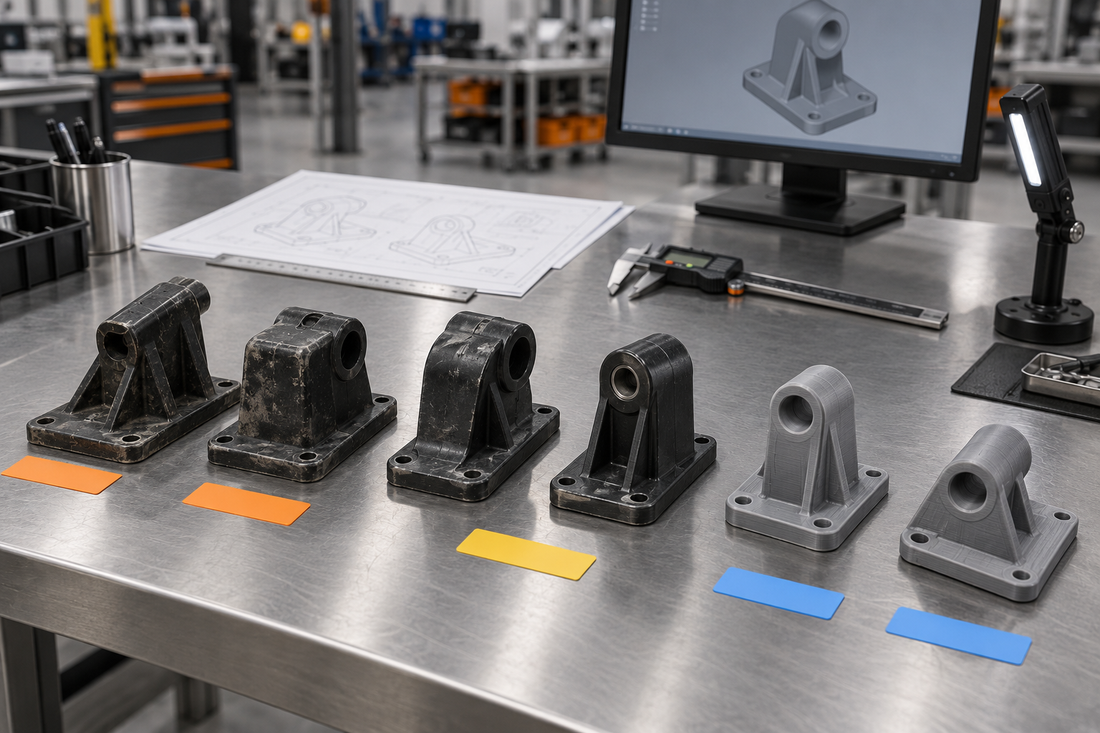

Start with a family map, not a scan list
Gather every part number, description, drawing, photograph, sample, equipment model, serial range, supplier number, revision, supersession, and usage record that may belong to the family. Preserve uncertainty. A familiar label does not prove two physical parts are interchangeable, and two different numbers do not prove the geometry is different.
| Evidence | Question | Possible action |
|---|---|---|
| Equipment and serial applicability | Which installed assets can use the part? | Keep separate until interchangeability is approved |
| Geometry and interfaces | Are differences functional, cosmetic, worn, repaired, or accidental? | Measure, compare, or hold unresolved |
| Supersession history | Did one number intentionally replace another? | Consolidate only with documented effectivity |
| Demand and stock | Is the item active, dormant, stranded, or insurance stock? | Prioritize, defer, or retire |
| Consequence and approval | What happens if fit or function is wrong? | Set validation depth or select another process |
Distinguish variant evidence from wear
Compare several sources when possible. Repeated geometry across independent samples is stronger than one worn core. Check mating parts, mounting patterns, motion envelopes, handedness, fasteners, inserts, sealing faces, cable routes, labels, and service modifications. Do not average conflicting geometry into a convenient model without an approved rationale.
Choose a disposition for every family member
- Reconstruct now: evidence, demand, consequence, and approval path justify work.
- Represent with a controlled common design: interchangeability is demonstrated and formally approved.
- Preserve as a distinct variant: an interface or effectivity difference matters.
- Hold for evidence: the item may matter, but samples, mating context, authority, or demand are insufficient.
- Retire: installed-base and service obligations allow removal from the active family.
- Source another way: material, process, consequence, rights, or economics do not fit the proposed workflow.
Control the reconstruction wave
Begin with a bounded wave that has clear samples, accessible interfaces, named approvers, and a realistic validation plan. Keep source identity, as-found condition, nominal decisions, CAD revision, prototype evidence, first-article disposition, and released production file connected. A family spreadsheet without controlled files and effectivity rules can still release the wrong part.
Fit, non-fit, and production risks
This approach fits obsolete plastic part families, multi-site maintenance catalogs, supplier exits, lost tooling, duplicated ERP records, and digital-spares programs. It is a poor fit when the requester lacks authority, consequence is unacceptable, material or regulatory requirements are unknown, or evidence cannot support a manufacturing definition. Farm intake fits multi-SKU, scanning, inspection-sensitive, staged, packaged, recurring, or otherwise complex work; instant quote fits clean released files and straightforward requirements.
- Scanning every number preserves duplicate cost instead of reducing ambiguity.
- A worn sample is mistaken for intentional nominal geometry.
- One common CAD model is released across incompatible equipment generations.
- Old stock or usage data is treated as proof of future demand.
- Retired numbers remain orderable without a supersession or rejection rule.
- Confidential geometry or customer property moves without defined custody and rights.
The 3D scanning and reverse-engineering service page owns the scan-to-CAD buyer job. Use the repair, reproduce, or redesign guide for single-part path selection and the spare-part criticality guide to prioritize family members.
Make the request quote-ready
- Part-number cross-reference, descriptions, suppliers, revisions, supersessions, and known duplicates.
- Equipment model, serial range, site, installed quantity, and applicability evidence.
- Physical samples, photographs, drawings, mating parts, known damage, repairs, and modifications.
- Usage history and demand scenarios labeled as estimates rather than promises.
- Critical interfaces, material and environment requirements, consequence of failure, and non-fit limits.
- Desired dispositions, reconstruction waves, approvers, validation gates, and released deliverables.
Frequently asked questions
Should every legacy part number become a separate CAD model?
No. First determine whether numbers represent true functional variants, supersessions, sourcing aliases, cosmetic differences, field modifications, or duplicate records. Consolidate only when interchangeability and effectivity are approved.
Can one worn sample define the nominal part?
Sometimes it can start the investigation, but it rarely proves nominal geometry by itself. Compare mating context, other samples, drawings, standardized features, wear patterns, and functional requirements before approving reconstruction decisions.
Which variants should be reverse engineered first?
Prioritize variants with active equipment, meaningful shortage consequence, plausible demand, adequate evidence, suitable material and process requirements, clear rights, and a named validation and approval path.
Final decision
Proceed only when the classification, source evidence, applicability, technical requirements, risks, approver, and release path are explicit. Put those inputs in the quote package before production work begins.
