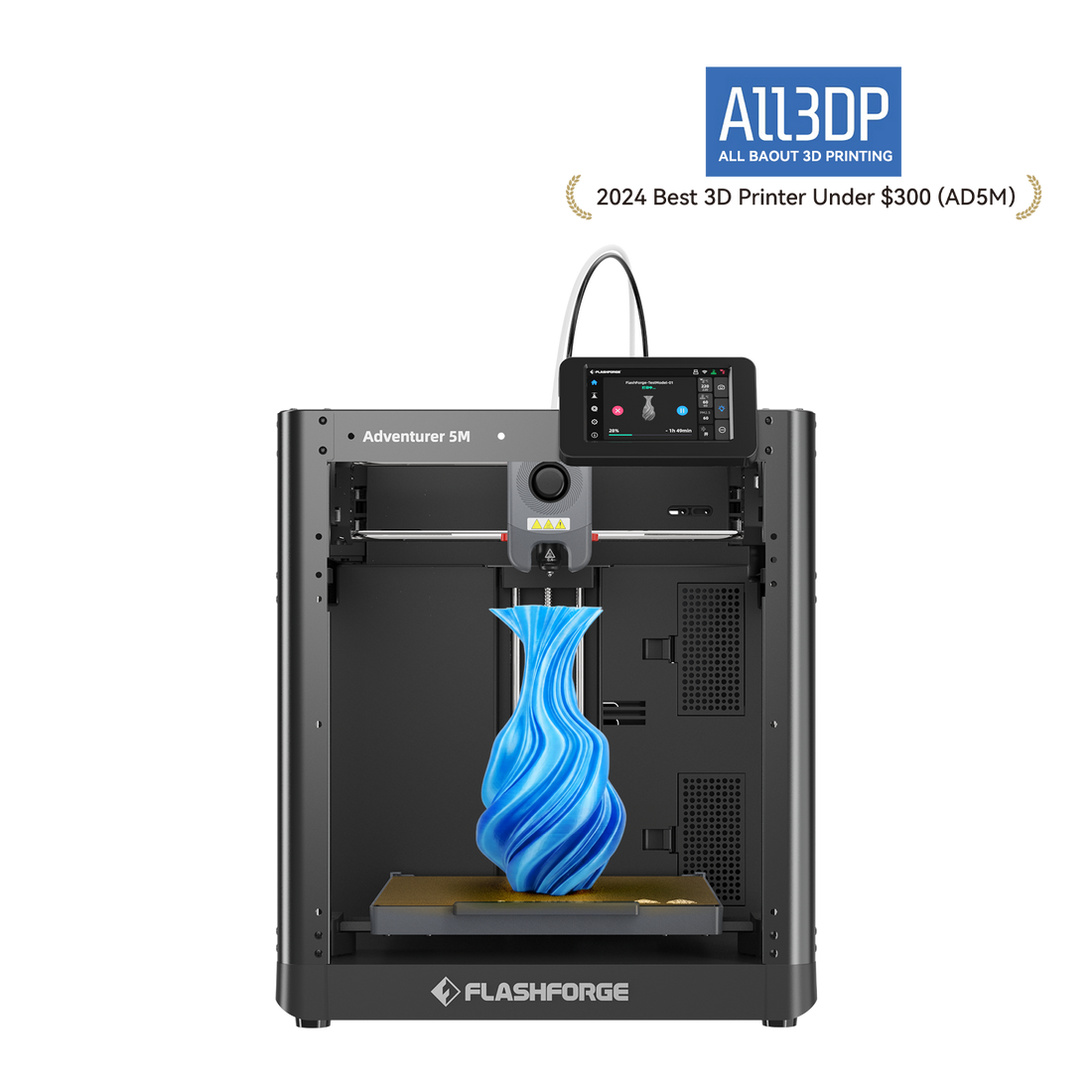

Flashforge Adventurer 5M open-frame CoreXY 3D printer in official product media

Flashforge Adventurer 5M Review: Fast, Simple Value

Verdict: The Flashforge Adventurer 5M remains a strong low-cost CoreXY printer for fast single-color PLA and PETG work. Its 220 mm cube, automatic leveling, quick-change nozzles, and wired networking are unusually useful at this price. Buy it for straightforward throughput and service access; skip it if you need stock multicolor, a factory enclosure, integrated filtration, or consistently polished results without profile tuning.

What the Flashforge Adventurer 5M is

The Adventurer 5M, often shortened to AD5M, is Flashforge's open-frame, single-nozzle CoreXY desktop printer. It has a 220 x 220 x 220 mm build volume, automatic bed leveling, a direct-drive extruder, a flexible PEI-coated steel plate, and a tool-free quick-detach nozzle. It is the simpler sibling of the enclosed Adventurer 5M Pro and the single-material predecessor to the four-input Flashforge AD5X.

Flashforge's current US product data lists the exact model as available and identifies one in-stock AD5M variant. The company also maintains an exact-model download page, current firmware history, a dedicated wiki, and OrcaSlicer configuration files. Those are meaningful lifecycle signals for a printer introduced several years ago. They do not guarantee a particular replacement part will remain available, but they make the 5M easier to defend as a current purchase than a marketplace-only clearance machine.

Who should buy it - and who should skip it

Best fit: beginners who want a fast first serious printer, hobbyists moving beyond older bed-slingers, schools that value Ethernet and simple setup, and small shops running mostly single-color PLA or PETG parts. It is also attractive to operators who prefer an accessible open frame and replaceable nozzle modules over an appliance-like enclosure.

Skip it: buyers whose everyday work needs ABS, ASA, or another chamber-sensitive material; anyone expecting automatic multicolor; users who require an integrated camera, filtration, and enclosed spool path; and production teams that need a mature centralized farm-management layer. If you want the same family with a factory enclosure, compare the Adventurer 5M Pro. If color is the point, compare the AD5X before buying an add-on-heavy 5M setup.

Key specifications in useful context

Specification Adventurer 5M Why it matters
Motion and frame Open-frame all-metal CoreXY The bed moves in Z while the toolhead handles X and Y, supporting fast motion without throwing the part back and forth.
Build volume 220 x 220 x 220 mm Enough for common organizers, brackets, toys, enclosures, and prototypes, but smaller than current 256-260 mm competitors.
Advertised motion ceiling 600 mm/s travel; 20,000 mm/s2 acceleration These are maximums, not a promise that every wall or material should print at them. Flow, cooling, geometry, and quality targets set real job speed.
Extruder and nozzle Direct drive; 280 C maximum; 0.25, 0.4, 0.6, and 0.8 mm nozzle options listed Direct drive helps with filament control, while the nozzle range lets an operator trade detail for throughput after profiles are qualified.
Bed and surface 100 C maximum; flexible removable PEI steel plate The removable surface simplifies part release, but cleanliness, first-layer calibration, and material-specific adhesion still matter.
Official material guidance PLA and PETG with 0.4 mm; TPU, PLA-CF, and PETG-CF with 0.6 mm Flashforge ties some materials to a larger nozzle. Abrasive composites also require attention to nozzle wear and dry storage.
Connectivity Wi-Fi, Ethernet, and USB Wired networking is useful on shelves and in schools, though connectivity alone does not equal full production-fleet orchestration.
Interface 4.3-inch touchscreen Large enough for routine loading, calibration, and job controls without relying entirely on a phone.
Recovery features Filament run-out reminder and power-loss recovery Helpful safeguards, but neither feature replaces validating recovery quality on representative parts.
Listed machine size 363 x 402 x 448 mm including display, excluding spool holder The rear spool needs extra depth and operator access beyond the bare footprint.

The official specification page also states that ABS-series filaments are not compatible with the stock AD5M. That warning matters more than the 280 C hotend number. A hot nozzle does not create a stable chamber, manage fumes, or stop a large warp-prone part from seeing drafts.

Print quality: capable, but profiles matter

TechGearLab's hands-on testing found the Adventurer 5M quick to assemble and easy to operate, with good dimensional clearances, clean support-removal surfaces, a consistent heated bed, and a fast 26.8-minute Benchy in its test method. The same review also found average overall print quality from stock settings, including rounded or over-sharp corners, visible waves, stringing, and weak bridging on some standardized models. Its conclusion was positive but measured: the printer can be a workhorse, provided the user is willing to tune slicer settings.

CNET's broader comparative testing also describes both the standard 5M and 5M Pro as producing good-quality prints for the price, while noting difficulty on a tolerance test. CNET particularly liked the network workflow for education or print-farm use and disliked the rear spool position. Together, those sources support a practical conclusion: the 5M has sound hardware and useful speed, but buying it does not eliminate calibration, profile work, or acceptance testing.

For production-oriented work, judge the printer with the exact nozzle, filament, layer height, and geometry you intend to run. A decorative Benchy time is not the same as accepted brackets per shift. Track complete cycle time, dimensional capability, first-pass yield, operator touches, and recovery behavior before assigning recurring orders.

Speed without the marketing shortcut

The 600 mm/s figure is a motion ceiling. Outer walls, overhangs, small layers, accelerations, volumetric flow, and cooling all reduce actual print speed. A 0.8 mm nozzle may improve throughput on suitable parts, but only when the hotend can melt the required material volume and the part still meets strength and finish requirements. A 0.25 mm nozzle moves in the opposite direction: it can resolve smaller features but often increases print time substantially.

The useful advantage is not that every line runs at 600 mm/s. It is that the CoreXY chassis has enough motion capacity to shorten many ordinary jobs compared with older entry-level bed-slingers. Use the slicer's complete estimate, validate that estimate on the machine, and apply a realistic utilization factor. Maintenance, warm-up, cooldown, plate cleaning, filament changes, part removal, and failed starts all exist outside headline motion speed.

Setup and daily workflow

TechGearLab reported a 12-minute setup that mainly involved attaching the screen and spool holder, removing shipping hardware, and following the touchscreen calibration prompts. Automatic leveling reduces one common source of beginner frustration, and the flexible plate makes part removal straightforward. Those are real quality-of-life advantages, especially when a machine is shared.

The rear spool is the awkward part of the layout. It adds depth and makes filament changes inconvenient when the printer sits against a wall or on a dense shelf. Plan for hand clearance and tube movement, not just the listed printer dimensions. A side-mounted or external dry-box feed can improve access, but any modified path should be tested for drag, run-out behavior, and reliable unloading.

Flashforge supports FlashPrint, Orca-Flashforge, and OrcaSlicer workflows. TechGearLab found the supplied software approachable but experienced occasional connection loss. All3DP later reported that networking, slicer support, and root-access options had improved across the 5M series. Because software and firmware change, test the current combination rather than assuming either the launch reviews or the latest release notes perfectly describe your unit.

Materials: where the open frame helps and hurts

PLA and PETG are the natural matches. The open frame provides access and cooling, while the direct-drive toolhead can handle routine functional and visual work. TPU is officially listed with a 0.6 mm nozzle; flexible-filament hardness, moisture, feed resistance, and speed still need to be qualified because "TPU" covers a wide range of behavior.

Flashforge also lists PLA-CF and PETG-CF with the 0.6 mm nozzle. Carbon-filled filament is abrasive, so confirm the installed nozzle material and replacement interval before treating compatibility as maintenance-free. Dry storage matters for composites, PETG, and TPU, even though the printer's rear spool holder is exposed to room air.

An enclosure kit can shield the frame, but panels do not automatically turn the 5M into a regulated heated-chamber printer. Flashforge's current product page explicitly says ABS-series filament is not compatible with the AD5M. Follow that model-specific guidance. For fumes and ultrafine-particle concerns, an enclosure also is not a substitute for suitable ventilation and the filament maker's safety information.

Nozzles, wear, and maintenance

The quick-detach nozzle system is one of the 5M's better operational features. A small nozzle can prioritize detail; 0.4 mm is the general-purpose default; and 0.6 or 0.8 mm can favor stronger line widths and faster bulk deposition. The nozzle is still a complete process change, not merely a hardware swap. Retune layer height, line width, temperature, flow, pressure advance, retraction, and cooling as needed.

The open frame makes belts, rods, fans, and the toolhead easier to inspect than on a tightly enclosed appliance. That accessibility is useful only if maintenance is documented. Keep a known-good nozzle, clean build surface, verified filament path, and current configuration backup. Record firmware and slicer versions when a production profile is approved, because an update can alter behavior even when the mechanical printer has not changed.

Flashforge's active wiki and exact-model downloads are helpful. The company publishes user manuals, quick-start material, OrcaSlicer configurations, firmware packages, and an Adventurer-series firmware history. TechGearLab found the included manual sufficient but wanted richer repair and replacement guidance at the time of its review. The current support footprint is broader, yet buyers should still inspect the parts catalog and local warranty process before scaling beyond one unit.

Operating costs people overlook

  • Nozzle inventory: each diameter needs its own validated profiles and may have a different wear rate.
  • Dry storage: the stock rear holder is not a dry box, particularly relevant for PETG, TPU, and composites.
  • Shelf depth: rear-spool access consumes more space and labor than the chassis dimensions suggest.
  • Profile qualification: stock settings may not meet your tolerance, bridging, or cosmetic requirements.
  • Network and software validation: wired Ethernet is useful, but connection reliability and job control need testing in your environment.
  • Labor: plate cleaning, part removal, filament changes, inspections, and failed starts remain part of cost per accepted part.

The 5M avoids the purge waste and long transition cycles of shared-nozzle multicolor systems. That simplicity is a genuine operating-cost advantage when most parts are one material and one color. Do not pay for automatic color hardware if the business case is reliable single-color throughput.

How it compares with realistic alternatives

Flashforge AD5X is the natural upgrade when four-input automatic color switching or multicolor TPU matters. It keeps a similar 220 mm open-frame concept but adds the IFS, purge waste, more filament paths, and more workflow complexity.

Bambu Lab A1 offers a larger 256 mm square bed, a polished consumer ecosystem, and an optional AMS lite color path. It is still open-frame. Compare ecosystem convenience and bed size against the 5M's Ethernet port, compact CoreXY layout, and quick-detach nozzle system.

Creality K1C is more appropriate when a factory enclosure and a more composite-oriented configuration matter. Its enclosure still does not remove the need for material qualification, ventilation, and maintenance.

Elegoo Centauri Carbon provides a larger 256 mm cube and enclosed CoreXY architecture. Its successor context and remaining-stock value need checking at purchase time, while the Adventurer 5M remains directly listed and supported by Flashforge.

Availability and lifecycle in 2026

As of this review, Flashforge's US product data marks the Adventurer 5M available at a promotional price below its comparison price. That observed price is not treated as permanent because promotions, regional taxes, stock, and warranty terms change. More important than the sale number is the combination of a live exact-model store listing, an available AD5M variant, current downloads, a dedicated wiki, and recent firmware documentation.

The newer AD5X does not make the 5M obsolete for everyone. If color changes are rare, the simpler printer can be cheaper to own, easier to maintain, and faster for the same single-color geometry because it has no material-transition cycle. The lifecycle risk is instead that entry-level competition moves quickly. Compare the delivered price and support package on the day you buy rather than relying on the model's original list price.

Final verdict

The Flashforge Adventurer 5M earns its place as a current value printer because it combines a compact CoreXY chassis, simple setup, useful nozzle choices, Ethernet, and active exact-model support. Independent testing supports its speed and usability while also showing why profile tuning matters. It is a sensible single-color PLA/PETG workhorse for an engaged operator, not a turnkey answer for chamber materials, automatic color, or fully unattended production.
