Elegoo Saturn 4 Review (2026): Still Worth Buying?
Share
Verdict: The Elegoo Saturn 4 remains a capable value-oriented medium-format resin printer in 2026: its 12K screen, 218.88 × 122.88 × 220 mm volume, automatic leveling, and useful sensors simplify the core workflow. Buy it at a meaningful discount for local USB printing; skip it if you need the Ultra’s faster tilt release, camera, Wi-Fi, or integrated heating.
Research disclosure: JCPRINTFARM has not hands-on tested this exact printer. This review is based on Elegoo’s current product and support material plus independent hands-on reviews from 3DWithUs and GamingTrend. Their observations are attributed below; specifications, lifecycle, and availability were rechecked October 13, 2026.

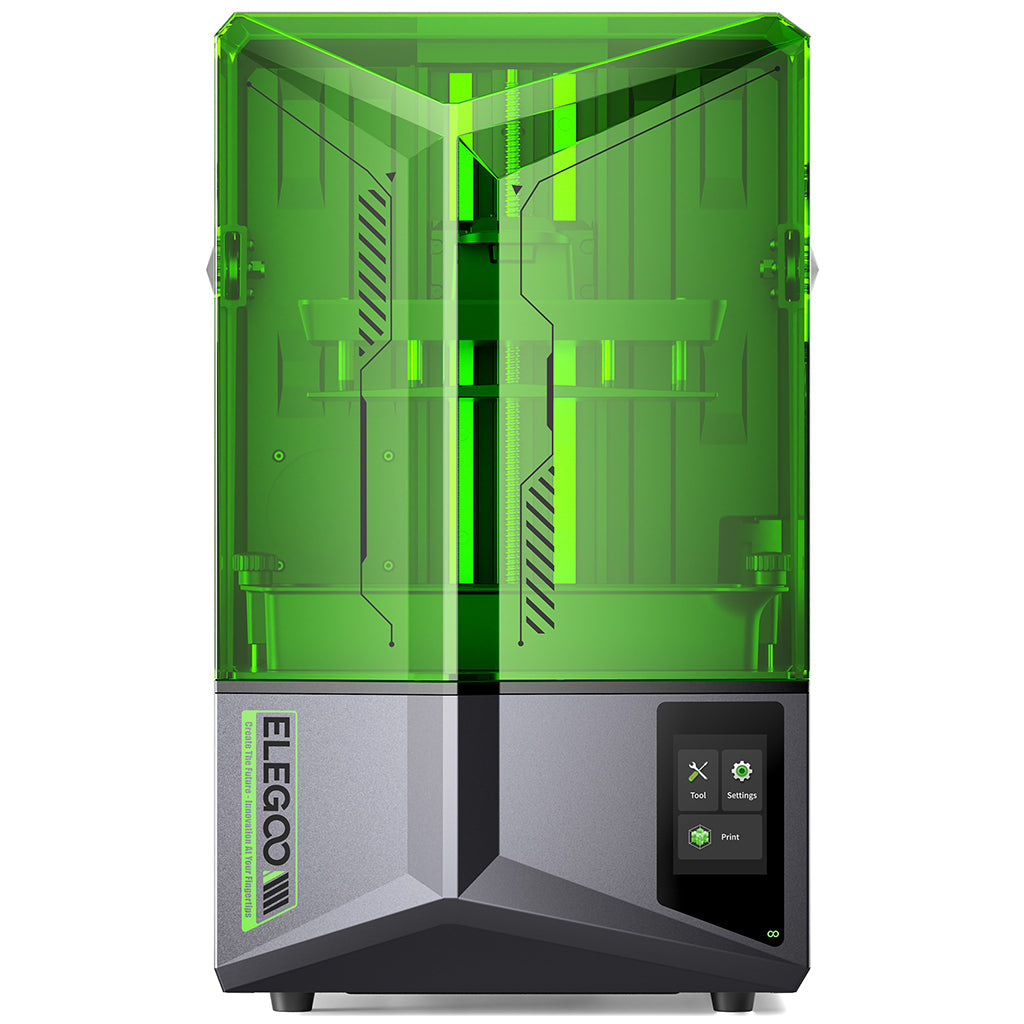

What the Elegoo Saturn 4 is
The Saturn 4 is the standard, non-Ultra model in Elegoo’s 2024 medium-format MSLA generation. It exposes liquid photopolymer resin through a 10-inch 12K monochrome LCD and offers substantially more plate area than the compact Mars line. Its central upgrade over the Saturn 3 is not another resolution headline; it is a spring-mounted build-plate system with automatic leveling, mechanical sensing, one-click self-check, residue detection, and resin-shortage and leveling-failure alerts.
That distinction matters because the name is easy to confuse with the Saturn 4 Ultra and Saturn 4 Ultra 16K. The standard Saturn 4 does not include the Ultra’s tilting-vat release mechanism, built-in camera, Wi-Fi transfer, or anti-drip tray. It is a slower, USB-centered machine with the same broad 12K imaging class as the original Ultra but fewer workflow conveniences.
Who should buy it—and who should skip it
The machine is approachable by resin-printer standards, but “automatic leveling” does not make resin printing clean or risk-free. You still need gloves, eye protection, ventilation appropriate to the resin’s safety data, spill control, washing and curing equipment, safe solvent handling, and a plan for contaminated supports, paper towels, and failed prints. Uncured resin should not contact skin or enter household drains.
Verified key specifications in context
| Process and light engine | MSLA with a 405 nm COB light source and Fresnel collimating lens. The 10-inch monochrome LCD exposes an entire layer at once. |
|---|---|
| LCD and XY pitch | 11,520 × 5,120 pixels; Elegoo lists 19 × 24 microns. Pixel pitch helps with fine detail, but resin, exposure calibration, antialiasing, supports, orientation, and post-processing still shape the visible result. |
| Build volume | 218.88 × 122.88 × 220 mm. This is useful medium-format capacity, though 30 mm shorter in Z than the Saturn 3’s listed height. |
| Speed | Elegoo lists a maximum of 70 mm/h. Treat that as an upper specification, not a universal completion rate; layer height, lift settings, exposure time, resin temperature, and geometry control real duration. |
| Leveling and detection | Automatic leveling using an intelligent mechanical sensor, plus self-check, residue detection, resin-shortage warning, and leveling-failure alarm. |
| Vat and plate | PFA release film, dual pour spouts, a laser-engraved plate, and a quick-release plate mount. The standard model lacks the Ultra’s tilting vat. |
| Connectivity | USB file transfer and a 3.5-inch touchscreen. There is no built-in Wi-Fi or camera on this standard model. |
| Physical size | 327.4 × 329.2 × 548 mm and about 13.5 kg. The flip-up hood reduces overhead removal space but needs clearance behind the machine. |
| Lifecycle | The exact-model US product page, global overview, downloads, and spare-parts ecosystem remained live when checked. The machine is still offered beside newer Ultra models, so price and replacement-part support matter more than launch-era positioning. |
Strengths
Automatic leveling removes a common setup variable
Traditional resin printers ask the owner to loosen the plate, home it against a card or screen protector, apply pressure, and tighten several screws without shifting alignment. The Saturn 4 replaces that ritual with a sensor-based suspended plate and automatic routine. Both independent sources treated this as a meaningful usability improvement. 3DWithUs reported successful work across multiple resin types, while GamingTrend described consistently successful initial printing without manual calibration.
That evidence does not mean every print will succeed. Leveling is only one variable: poor supports, underexposure, cold resin, a damaged release film, debris in the vat, or an overloaded cross-section can still cause failure. The advantage is narrower and credible—the printer reduces one recurring setup task and pairs it with alerts that may catch avoidable mistakes.
The plate balances batch capacity and desktop practicality
A 218.88 × 122.88 mm XY area can hold a useful batch of tabletop miniatures, several product masters, or a wide display model without moving into the footprint and resin inventory of an industrial machine. MSLA layer time is driven mainly by exposure and motion rather than the number of small objects on the same layer, so filling the plate can improve throughput when supports and suction forces remain sensible.
The 12K optical system is already detailed enough for most work
The asymmetric 19 × 24 micron pixel pitch is fine enough that model quality will often be limited by the source mesh, support scars, resin behavior, and finishing before raw pixel count. Newer 16K panels improve the number on the box and reduce pitch, but buyers should not assume the practical difference is dramatic on every painted miniature or functional prototype. Reliable exposure and a clean optical path matter more than chasing resolution alone.
The flip-up hood is genuinely useful
The hinged cover stays attached instead of demanding a clean parking place for a large removable shell. That is convenient in a crowded workspace and lowers the chance of setting a resin-spattered hood on another surface. Measure rear clearance before installation, and remember that a hood contains light and splashes; it is not a substitute for room ventilation or source capture.
Limitations and real workflow costs
The standard model gives up the Ultra’s major speed feature
The Saturn 4 uses conventional vertical separation rather than Elegoo’s tilt-release vat. That helps explain its 70 mm/h maximum versus the higher headline attached to the original Ultra. For occasional hobby batches this may be acceptable. For a shop running plate after plate, the time difference and easier remote workflow can justify an Ultra-class machine even when nominal XY resolution is similar.
USB-only operation limits remote workflow
There is no onboard Wi-Fi or built-in camera. Files move by USB drive, and the machine cannot provide native time-lapse or camera-based monitoring. Offline operation can be attractive for a simple or isolated workflow, but it adds walking, file-version discipline, and manual status checks when several machines are running.
The build plate can drip during removal
GamingTrend specifically criticized the absence of the Ultra’s small front drip tray. Because the plate is removed horizontally, residual resin can reach the machine or work surface. This is manageable with a protected bench, absorbent pads, deliberate drain time, and a compatible aftermarket catcher, but it is a recurring housekeeping cost rather than a one-time annoyance.
Temperature control remains external
The Saturn 4 has no integrated resin heater. Resin viscosity and exposure behavior change with temperature, so a cold garage or basement can produce slower flow and inconsistent results. Condition the room or use a manufacturer-compatible heating approach without blocking ventilation, overheating electronics, or improvising an unsafe enclosure. Users who print through winter should include temperature control in the purchase comparison.
Consumables and cleanup dominate total ownership
Budget for resin, release films, replacement LCD protection, gloves, filters, wash fluid, curing equipment, storage containers, spill liners, and proper waste handling. The larger plate invites larger batches, which also means more supports, more wash capacity, and more resin exposed when a setup error affects the entire build. A low printer price does not make the process inexpensive.
Print quality and realistic expectations
3DWithUs documented multiple detailed test models and praised the automatic setup, print quality, and plate adhesion while noting the model’s slower release process and missing premium features. GamingTrend likewise reported successful initial prints and treated the new leveling system as the headline improvement. These are reviewers’ experiences, not JCPRINTFARM benchmark results, and neither establishes a universal failure rate.
For a new resin, start with the manufacturer’s range and a small exposure calibration rather than copying a stranger’s number unchanged. Hollow large models thoughtfully, add drain and vent holes, avoid broad unsupported cross-sections, and inspect the vat after a failure. Residue detection is a useful safeguard, but it should not replace filtering resin or verifying that cured fragments are gone before the next plate descends.
Saturn 4 versus Saturn 4 Ultra
The standard Saturn 4 and original Saturn 4 Ultra share a 10-inch 12K imaging foundation and similar nominal plate size, but their workflows differ:
- Choose Saturn 4 when the discount is substantial, USB transfer is acceptable, you do not need a camera, and 70 mm/h-class operation fits the workload.
- Choose Saturn 4 Ultra for tilt release, faster advertised operation, Wi-Fi, camera monitoring and time-lapse, and the included anti-drip accessory. Read the Saturn 4 Ultra review for the detailed tradeoff.
- Choose Saturn 4 Ultra 16K when current support, integrated heating, and its revised 16K platform matter enough to justify the step up. Our Saturn 4 Ultra 16K review covers that newer model.
Other alternatives
- Elegoo Mars 5: a better fit when smaller parts and a lower material commitment matter more than plate area. See the Elegoo Mars 5 review.
- Anycubic Photon Mono M7: another medium-format option whose controls, ecosystem, and current regional price should be compared with the Saturn rather than judging resolution alone.
- Outsource occasional resin work: if the need is sporadic, paying for finished parts can avoid chemical handling, wash-and-cure equipment, and idle consumables. Send JCPRINTFARM the project details to compare a service route.
Final verdict
The Elegoo Saturn 4 is no longer the technology leader, but it remains a rational discount buy. Its generous medium-format plate, 12K light engine, automatic leveling, self-check, and mechanical alerts solve more practical problems than another round of resolution marketing. Independent hands-on reporting supports the case that it can produce detailed work with relatively little initial calibration.
The decision turns on price and workflow. Buy it when the standard model is clearly cheaper than an Ultra, you are comfortable moving files by USB, and you already have a safe resin-processing space. Pass when you need faster tilt release, remote monitoring, integrated heating, or the newest support runway. Browse the 3D printer review hub for more current alternatives.
