Designing Threads for 3D Printed Parts: Printed Threads, Taps, or Inserts
Published
Choose a threaded feature by load, assembly cycles, service access, surrounding wall geometry, material, orientation, and who owns installation. Direct-printed threads can suit larger, lightly loaded connections; tapping can create a clean thread in suitable printed stock; inserts add metal engagement for repeated service. Prototype the actual joint and approve its installation and acceptance method before a production release.
Choose the right path for your production parts
Farm intake fits multi-SKU, recurring, inspection-sensitive, staged, packaged, scanning or reverse-engineering, and otherwise complex work. Instant quote fits clean files and straightforward requirements.

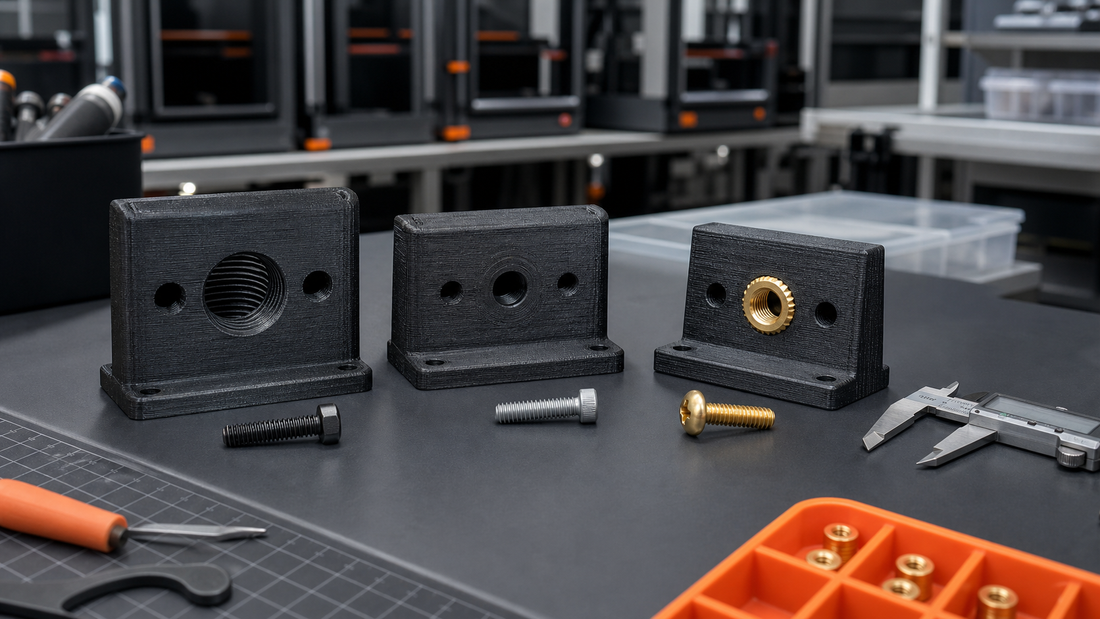

Printed threads, tapped holes, or inserts: start with the joint job
A fastener drawing that says only “threaded” leaves the supplier to guess about assembly life, installation, inspection, and failure consequences. Define whether the connection locates parts, clamps a cover, carries a sustained load, receives field service, or is assembled once. Name the screw or mating part, access direction, torque-control responsibility, and acceptable repair route.
| Approach | Good fit when | Production risks to control |
|---|---|---|
| Direct-printed internal or external thread | The thread form is printable at the selected scale and orientation, loads are bounded, engagement is accessible, and production-intent samples prove assembly. | Layer direction, seam and support contact, first-layer effects, small thread features, material behavior, and repeated assembly can change fit or damage. |
| Post-print tapped hole | There is enough material around a correctly designed pilot feature, the polymer and geometry tolerate cutting, and the added operation can be controlled. | Wrong pilot geometry, thin walls, poor chip removal, cross-threading, inconsistent depth, and an unscoped manual operation create variation. |
| Heat-set or other threaded insert | Repeated assembly, repairable metal engagement, or a controlled hardware interface justifies installation and inspection. | Insert model and receiving feature mismatch, heat damage, tilt, pull-through, insufficient surrounding material, inaccessible installation, or uncontrolled substitution. |
| Self-tapping or thread-forming fastener | The fastener and pilot geometry are designed as a system and assembly evidence supports the intended material and cycle count. | Splitting, stripping, debris, stress relaxation, supplier substitution, and repeated removal can invalidate an otherwise convenient joint. |
| Captured nut or separate hardware | Geometry permits positive retention and hardware installation without weakening critical walls or trapping loose parts. | Wrong pocket fit, inaccessible assembly, rotation, mixed hardware, and missing retention or kitting requirements. |
Design inputs that decide reliability
Load path and service life
Document the load direction, whether clamp load matters, how often the joint will be opened, and what happens if it loosens or strips. A one-time access cover and a field-service joint are different production problems even when the screw size matches.
Orientation, support contact, and access
Thread quality depends on how the feature is built and reached. Identify orientation constraints, support-contact limits, tool clearance, insert-installation direction, blind-hole depth, keep-outs, and whether the assembled part hides the feature. Do not assume a CAD-perfect helix or hole is an acceptance result.
Material and hardware definition
Specify the functional material requirement plus the exact screw, insert, nut, or approved equivalent. Include supplier part numbers where hardware is controlled, and state whether JC Print Farm supplies, installs, bags, or kits it. Material, color, geometry, hardware plating, and installation heat can all affect the joint and must be validated for the application.
Use a production-intent joint coupon or first article
Before releasing a repeat order, test the actual feature with the intended material, build approach, hardware, installation tool, mating component, and assembly method. A coupon can screen pilot-hole or insert geometry, but the first article should also evaluate the surrounding production part, access, wall behavior, and final assembly. Record the approved revision and what requires reapproval.
Useful acceptance checks
- Correct part, revision, units, thread or hardware specification, feature location, depth, and access
- Hardware identity, installed orientation and seating, visible damage limits, and presence when supplied or kitted
- Assembly with the controlled mating component or gauge when agreed, plus the sampling and exception route
- Change triggers for material, orientation, receiving geometry, hardware source, installation method, or finishing
Fit and non-fit cases
This workflow fits covers, housings, fixtures, brackets, service parts, and repeat assemblies with a defined fastening job. It is not a universal torque, pull-out strength, thread-size rule, insert-installation temperature, cycle-life promise, or substitute for application testing. Escalate safety-critical, regulated, pressure-containing, high-temperature, highly loaded, or injury-related joints to qualified engineering and validation.
Quote-readiness checklist
- Controlled CAD and drawing, part number, revision, units, quantity by SKU, release cadence, and manufacturing authority
- Joint job, load direction and consequence, mating component, fastener and insert specification, assembly cycles, access, and service environment
- Material requirement, orientation or cosmetic constraints, pilot or receiving geometry, supplied hardware, installation ownership, kitting, labels, and packaging
- First-article or coupon plan, functional assembly check, inspection and sampling, approved alternates, nonconformance route, and reapproval triggers
Use the production 3D printing service, repeat production runs guide, quality-control and change-control guide, and production RFQ checklist.
Threaded FDM part FAQs
Are heat-set inserts always better than printed threads?
No. Inserts add hardware, installation, inspection, cost, and design constraints. They can be valuable for repeat assembly or metal engagement, but the joint should be chosen from its load, service, geometry, material, and validation needs.
Can a print farm tap any pilot hole after printing?
No. Tapping requires suitable geometry, surrounding material, access, depth, tool choice, and a controlled added operation. Put it in the RFQ and drawing rather than assuming it is included.
Should a buyer specify installation torque?
Only when the engineering and validation basis supports it. State who controls installation, the tool or method, and the acceptance plan. JC Print Farm should not invent a universal torque for an unvalidated printed joint.
What should trigger reapproval?
Changes to the receiving geometry, material, orientation, hardware or insert source, installation method, mating component, finish, or use condition can change the joint. Define project-specific triggers before repeat releases.
