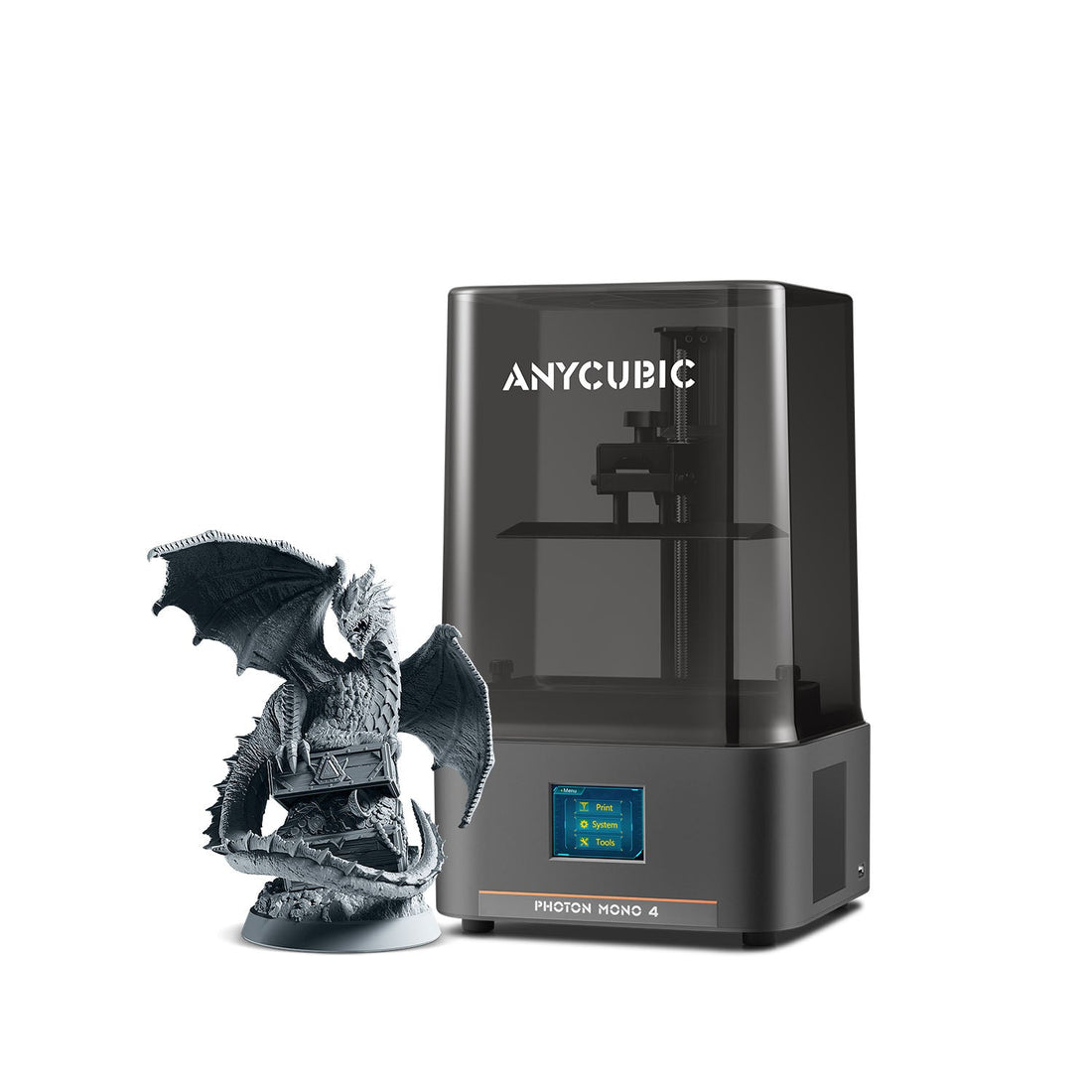

Anycubic Photon Mono 4 Review (2026): Fine Detail, Basic Workflow
Share
Verdict: The Anycubic Photon Mono 4 is a compact, deliberately basic resin printer that makes sense for budget-conscious miniature and model makers who value fine pixel pitch over automation. Its 153.4 × 87 × 165 mm build volume, manual leveling, USB-only workflow, and absent heater keep expectations grounded. Buy it for inexpensive detail and simple maintenance—not for speed, smart monitoring, or production throughput.
The Photon Mono 4 is the standard model, not the more automated Photon Mono 4 Ultra. That distinction matters. Both names point toward a 10K-class desktop resin printer, but the standard Mono 4 is the stripped-back entry: manual four-point leveling, conventional FEP release film, USB file transfer, no camera, no resin-level monitoring, and no built-in vat heater. It is closer to a dependable basic tool than a connected appliance.
Who the Anycubic Photon Mono 4 fits
The strongest case is a hobbyist printing miniatures, small figures, jewelry-scale patterns, compact display models, or detailed prototypes. The 17 × 17 μm XY pixel pitch is more than fine enough for many small-detail jobs, while the modest plate is easier to fill economically than a large vat when the work consists of small parts.
- Good fit: beginners willing to learn resin safety and manual leveling.
- Good fit: miniature painters and model makers whose parts fit within a 153.4 × 87 mm footprint.
- Good fit: buyers who prefer offline USB transfer and do not need a cloud or app workflow.
- Good fit: a small secondary resin machine for short, detail-heavy jobs.
Who should skip it
Skip the Mono 4 if you want automatic leveling, failure detection, remote monitoring, a heated vat, or fast high-volume production. It is also the wrong choice if most parts need a broad build plate or if lifting a removable cover is awkward in your workspace. A printer’s low purchase cost does not remove the need for ventilation, protective equipment, washing, curing, consumables, and responsible waste handling.
- Choose a larger machine if busts, terrain, enclosures, or batch size regularly exceed the small plate.
- Choose a more automated model if sensors and guided setup are central to your buying decision.
- Do not buy any open-vat resin system without a workable exposure-control and cleanup plan.
Key specifications in practical context
| Process | 405 nm masked stereolithography (MSLA) |
|---|---|
| LCD | 7-inch monochrome screen, 9024 × 5120 pixels (“10K” class) |
| XY pixel size | 17 × 17 μm |
| Build volume | 153.4 × 87 × 165 mm |
| Light system | Anycubic LightTurbo matrix |
| Leveling | Manual, four-point plate adjustment |
| Release film | FEP |
| Connectivity | USB drive |
| Machine size and weight | Approximately 230 × 235 × 391 mm; 4 kg |
The resolution number should not be read as an automatic guarantee of better finished parts. Pixel pitch is only one contributor; exposure tuning, resin, support strategy, release behavior, model preparation, and mechanical stability also matter. FauxHammer’s hands-on assessment specifically cautioned that the headline 10K specification did not create the dramatic visible advantage the label might imply. That is useful buyer context, not a reason to dismiss the printer.
Strengths
Fine XY pitch at the entry level
A 17 μm square pixel is a strong paper specification for small models. For miniature-scale surfaces and engraved details, the Mono 4 is unlikely to be limited simply because newer printers advertise a larger “K” number. A well-supported model and a calibrated resin profile will usually matter more than chasing another resolution badge.
Simple, offline workflow
USB-only file transfer is old-fashioned but predictable. There is no wireless handshake, cloud account, or remote service between a sliced file and the printer. That can appeal to a workshop that values a contained workflow. The tradeoff is equally plain: there is no remote queue, status check, or camera view.
Conventional consumables and service access
The standard FEP film is familiar and widely understood. Published hands-on coverage also notes a removable side access panel, a practical feature when troubleshooting or replacing service parts. Anycubic still lists compatible LCD screens and build plates, and its support wiki maintains a dedicated Photon Mono 4 section. Those signals are more useful for ownership than a launch-day feature list alone.
Compact footprint
The chassis occupies little bench space before allowing for lid removal, wash equipment, cure equipment, resin bottles, tools, and spill containment. The machine itself is compact; the complete resin workflow is not. Plan the whole station rather than measuring only the printer.
Limitations and workflow costs
Manual leveling and no smart safeguards
Manual leveling is not inherently unreliable, but it demands a correct first setup and a user who recognizes early adhesion problems. The Mono 4 lacks the Ultra model’s more advanced monitoring. A failed print can continue consuming time and resin until an operator notices it. For unattended or repeated batch work, that simplicity becomes labor rather than charm.
Small plate, conventional speed
The 153.4 × 87 mm XY area is appropriate for miniatures and compact parts, not broad production nesting. Resin printers cure a full layer at once, so adding small parts within the same layer can be efficient, but the limited plate still caps batch size. The 165 mm Z height is useful for slender models, although tall prints increase peel forces and failure consequences.
No built-in resin heating
Resin viscosity and exposure behavior change with temperature. In a cool room, the absence of controlled vat heating means the operator must manage ambient conditions or use a safe, compatible external solution. Do not improvise heat around volatile chemicals or electronics. Follow resin and equipment guidance, and keep ignition and electrical risks in mind.
Basic physical details
FauxHammer reported that the light chassis and low-grip feet let the machine slide on a smooth surface, and criticized the vat pour spout. Those are not resolution-chart problems; they are daily handling problems. A stable, chemical-resistant mat can improve grip and contain drips, but it does not fix an awkward pour. Budget time for careful decanting and cleanup.
The resin workflow is the real cost
Printer price is only the start. Owners need resin, nitrile gloves, eye protection, suitable ventilation or source capture, wash liquid or the resin maker’s specified cleaning process, curing equipment, filters, funnels, spare film, wipes, tools, and a plan for contaminated waste. Uncured resin should not contact skin, household surfaces, or drains. “Water washable” describes a material process; it does not make contaminated wash water safe to pour away.
Material and process fit
The Mono 4 is intended for 405 nm photopolymer resin. Standard, tough, flexible, castable, or specialty products can behave very differently, so compatibility does not mean one universal exposure profile. Start with a resin manufacturer’s guidance, run a small validation print, and record temperature, layer height, exposure, lift, and support settings before committing a full plate.
For visual models, surface detail can be excellent, but thin decorative features remain constrained by resin strength and orientation. For functional parts, choose resin around mechanical and environmental requirements rather than the sharpest marketing image. If the application needs certified medical, dental, food-contact, or safety-critical performance, printer capability alone is not qualification.
Photon Mono 4 versus realistic alternatives
Anycubic Photon Mono 4 Ultra
The Mono 4 Ultra is the natural step up when smarter assistance and a faster, more modern workflow matter. Do not treat the two as cosmetic trims. The standard Mono 4 is the value choice for manual operators; the Ultra is the convenience choice if its additional systems are worth the higher cost.
Anycubic Photon Mono M7 Pro
The Photon Mono M7 Pro provides a larger, more feature-rich direction for buyers who need greater capacity and workflow assistance. It also requires more bench space, more resin in play, and a larger ownership commitment. The Mono 4 remains easier to justify when most jobs are small.
Elegoo Saturn 4 Ultra
The Elegoo Saturn 4 Ultra is better aligned with buyers prioritizing a larger plate and automation. It is not a like-for-like budget substitute. Compare the full station cost, part envelope, support ecosystem, and operator time—not only LCD resolution.
Outsource instead of owning the process
If resin jobs are occasional, the safer economic choice may be to avoid building a complete wet-process station. For production parts or a mixed workload, send the project requirements to JCPRINTFARM and compare a supplied-part path with the time, training, consumables, and controls required for in-house printing.
Lifecycle and availability in 2026
Anycubic’s official store still listed the Photon Mono 4 product as available when checked on October 1, 2026, and the dedicated support wiki remained live. The store also listed compatible replacement LCD and build-plate options. Regional stock, plug type, bundle contents, pricing, and shipping can differ, so confirm the exact single-unit variant rather than assuming a bundle page represents local availability.
Buying checklist
- Confirm your largest part fits within 153.4 × 87 × 165 mm after orientation and supports.
- Decide whether manual leveling and USB transfer are acceptable.
- Price the wash, cure, ventilation, protective equipment, and waste workflow.
- Check local availability of replacement FEP, screen protection, and LCD service parts.
- Verify the resin’s wavelength, temperature range, exposure guidance, and intended use.
- Leave vertical clearance to remove the cover and lateral room for safe decanting.
Final verdict
The Anycubic Photon Mono 4 remains defensible because it does not pretend to be a production system. It is a small, manual, USB-driven resin printer with fine pixels and a low-complexity hardware story. That is enough for miniatures and small detailed models when the operator supplies careful setup, tuned resin profiles, and a serious safety process. Buyers who want sensors, heating, remote monitoring, or larger batches should move up rather than trying to retrofit the missing workflow.
Frequently asked questions
Is the Photon Mono 4 the same as the Photon Mono 4 Ultra?
No. They are distinct printers. The standard Mono 4 uses manual leveling, USB transfer, standard FEP, and a simpler feature set. The Ultra adds workflow and monitoring features; do not apply Ultra reviews or consumable specifications to the standard model.
Does 10K guarantee better prints?
No. The 9024 × 5120 LCD and 17 μm XY pitch describe pixel geometry. Resin, exposure, optics, mechanics, supports, orientation, temperature, and post-processing also determine the finished result.
Does the Photon Mono 4 have Wi-Fi or automatic leveling?
No. The standard model uses USB file transfer and a manual four-point leveling process.
Is the Photon Mono 4 suitable for a print farm?
It can handle repeated small-detail work, but the small plate and manual workflow increase operator touches. A farm should validate throughput, consumable supply, cleanup capacity, failure detection, and service parts before standardizing on it.
